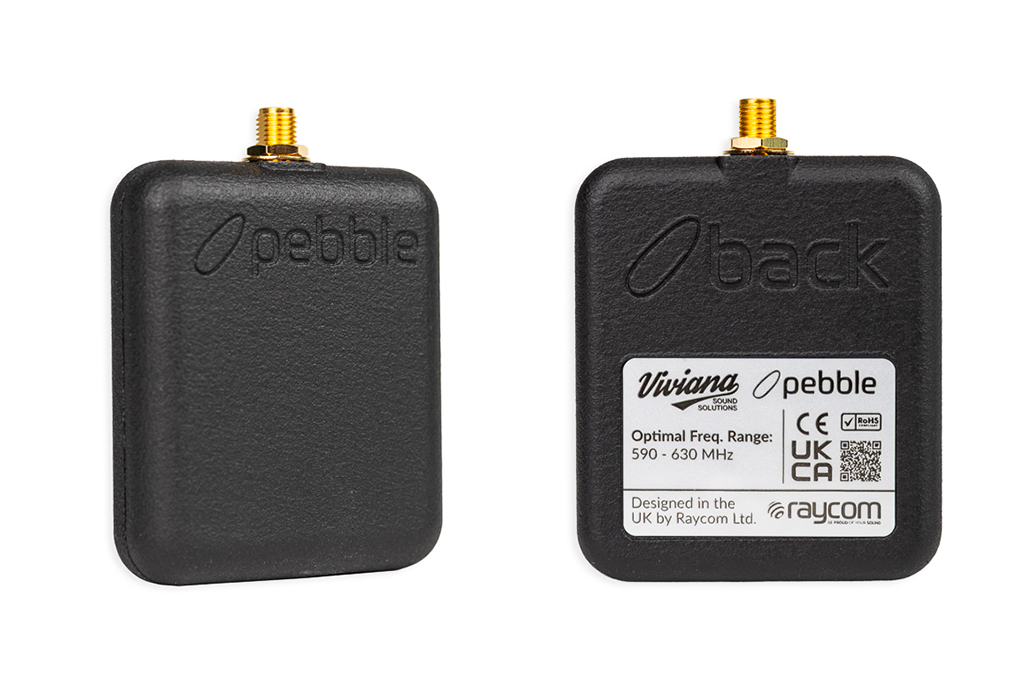

Technical highlights

• Frequency range of tested unit: 590–630 MHz
• Provides a much better 50 Ohm resistive match across the full band, ensuring optimal power transfer from any transmitter
• Designed for on-body use, minimising detuning and signal loss
• Rugged, low-profile design making it practical for real-world production use

PLEASE NOTE: PEBBLE COMPATIBLE CABLES ARE SOLD SEPARATELY

“This antenna works with the body, not against it — preventing the huge losses when the TX antenna is on the wrong side.” — Pyers Easton, CEO, Raycom

Where viviana pebble performs best

Viviana Pebble provides the greatest improvement in situations where the body would normally block the transmitter antenna.

Typical examples include:

• Open outdoor environments
• Large studios or stages
• When transmitters are worn under clothing or costumes
• When talent frequently turns away from the receive antennas

In these scenarios Viviana Pebble can significantly improve usable range and signal stability.

Where the difference may be smaller

Viviana Pebble is designed to solve the specific problem of body absorption.

If that problem is not present, the improvement may naturally be less noticeable.

Examples include:

• When the transmitter antenna is not close to the body
• Indoor environments with strong RF reflections

In these situations Viviana Pebble will still perform well, but the improvement compared with a whip antenna may be smaller.

We hope you enjoy many years of improved range and reliability with Viviana Pebble.

If you need advice on system setup, accessories or wireless design, please contact Raycom or Viviana Sound Solutions.

Viviana Pebble Features

LAB COMPARISON (PEBBLE vs WHIP)

Test results conducted at the Cambridge laboratory in an anechoic chamber:

These plots show the absolute radiated gain of each antenna in all directions when worn on a body phantom that simulates the electrical properties of the human torso.

• The shape and size of each plot indicate how strongly the antenna radiates in different directions
• The colours represent the level of radiated gain, with warmer colours indicating higher gain and cooler colours indicating lower gain
• The views labeled Front and Back show the radiation pattern on each side of the body

In simple terms:

A larger plot with warmer colours means the antenna is radiating more effectively in those directions

HOW TO WEAR THE PEBBLE

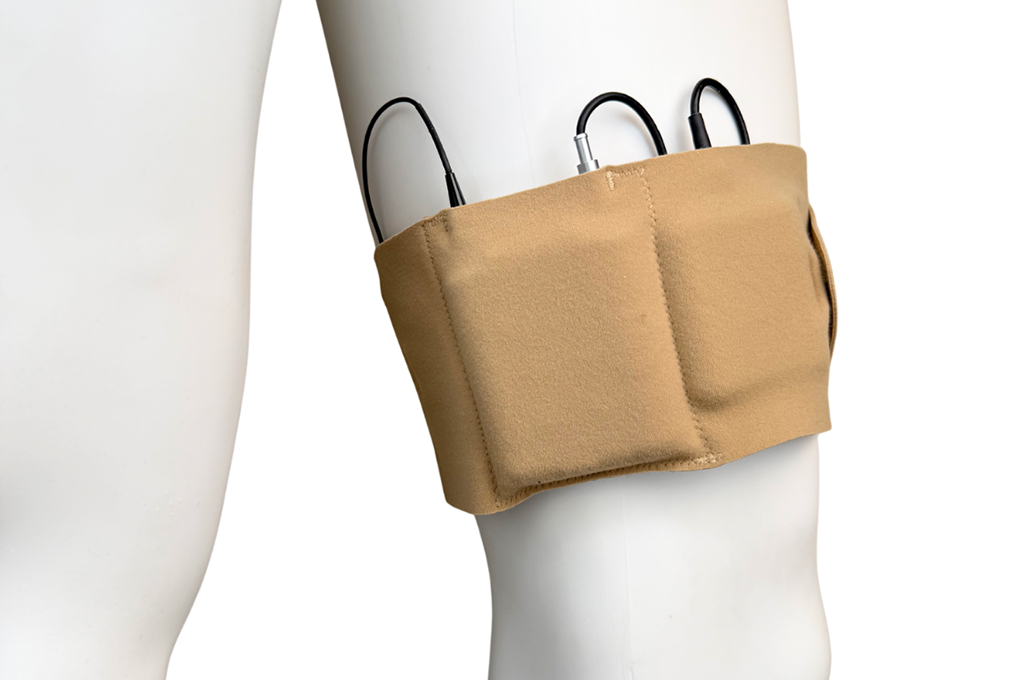

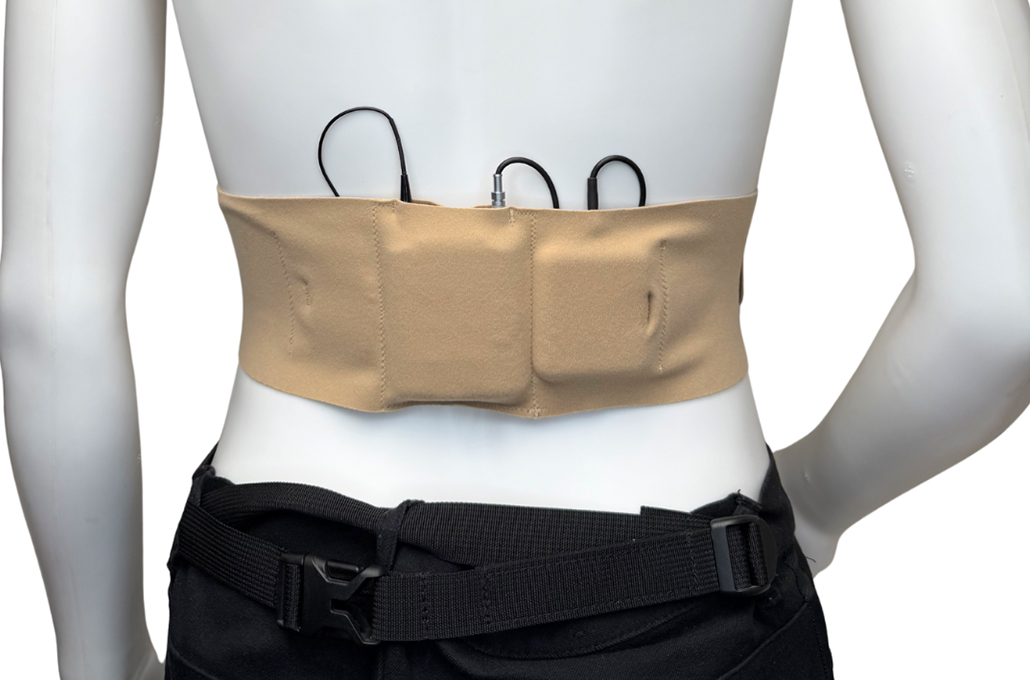

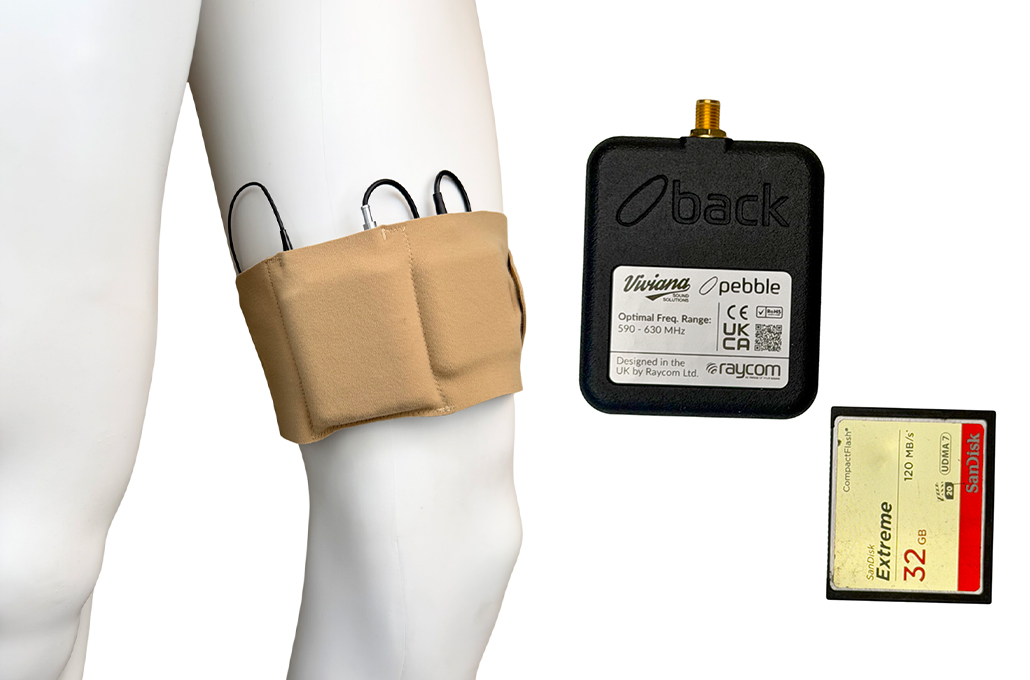

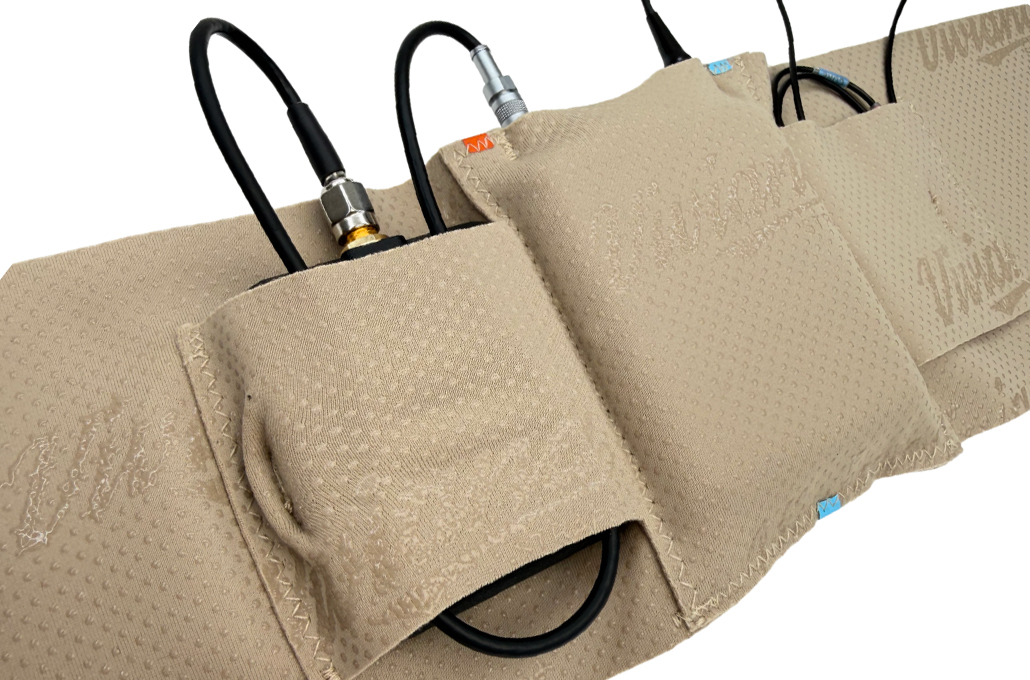

To wear the Pebble, you can use the Viviana Extreme Straps (single pouch version) by placing the Pebble inside one of the two pouches designed for the lav mic cable.

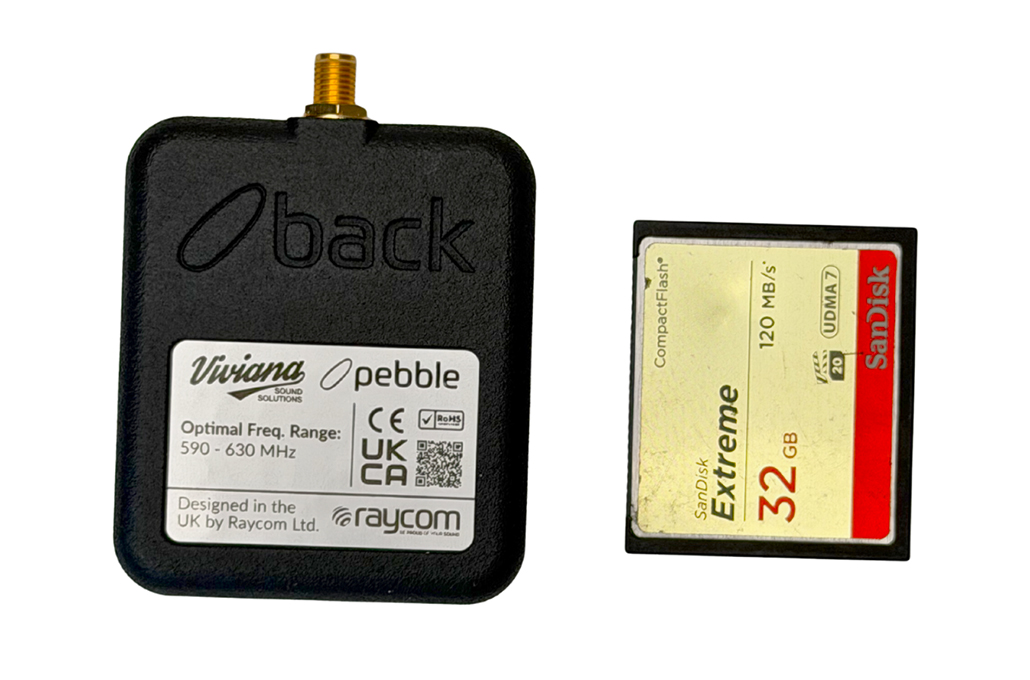

IMPORTANT: The back side of the Pebble, where it is marked “BACK,” must be in contact with the body.

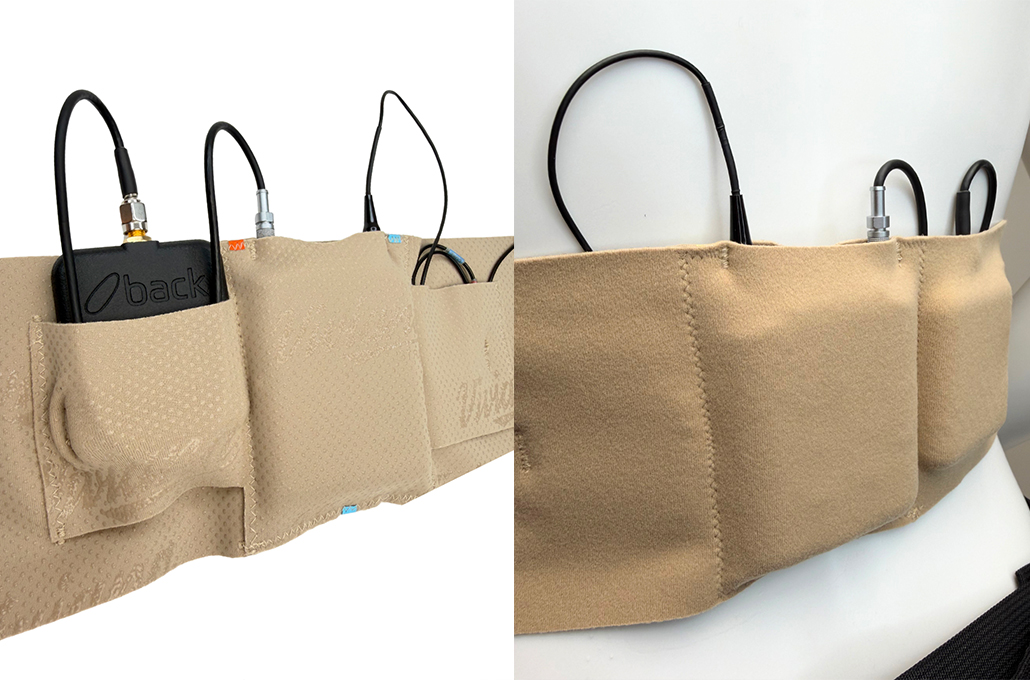

The cable connecting the Viviana Pebble to the TX can be placed inside the Pebble pouch, but it must stay on the back side (where “BACK” is marked), and absolutely not on the front or on the sides of the Viviana Pebble.

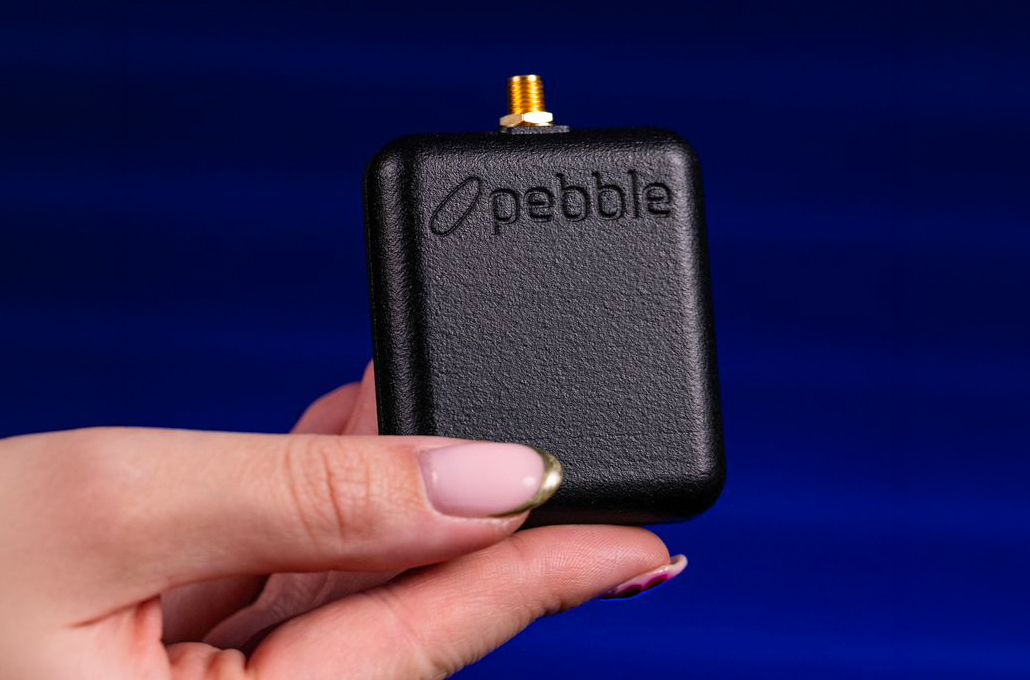

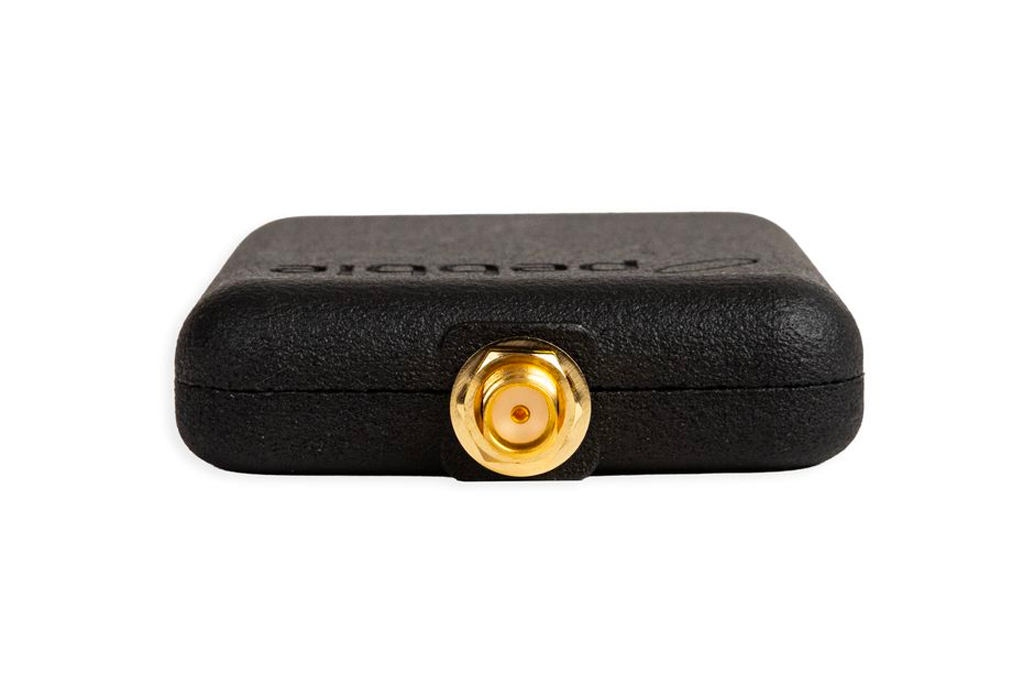

Low profile

Viviana Pebble is super low profile and easy to conceal on any part of the body. It is essential that the side marked “BACK” is always in contact with the body.

Designed for on-body use

Minimising detuning and signal loss.

Greater reliability when worn close to the body.

Signal propagate efficiently

This allows the signal to propagate far more efficiently into the surrounding space.

FAQS

Stretch the pouch opening and slide the transmitter inside — the fabric is highly elastic and engineered to return to shape without damage.

Once positioned, the top stitching creates a firm grip that holds the transmitter securely during movement or long takes.

Viviana Straps are designed for professional daily use, combining durability with comfort.

Although they’re built to last, they’re considered consumable gear — part of a normal production cycle.

In continuous testing, they’ve proven reliable for over 180 days of constant use before showing signs of wear.

Even after that, they remain functional, but we suggest replacing them periodically to ensure maximum hygiene and performance.

Viviana Straps Extreme can be washed either by hand or in a washing machine at 40 °C (104 °F).

Do not use a tumble dryer to preserve the elasticity and durability of the material.

Yes, all Viviana Straps are entirely made in Italy using OEKO-TEX® STANDARD 100 certified materials, one of the world’s most rigorous textile safety standards.

This certification guarantees that every component, from the yarn to the finished product, has been tested for harmful substances and is safe for direct contact with the skin, making it ideal for people with sensitive skin or allergies.
